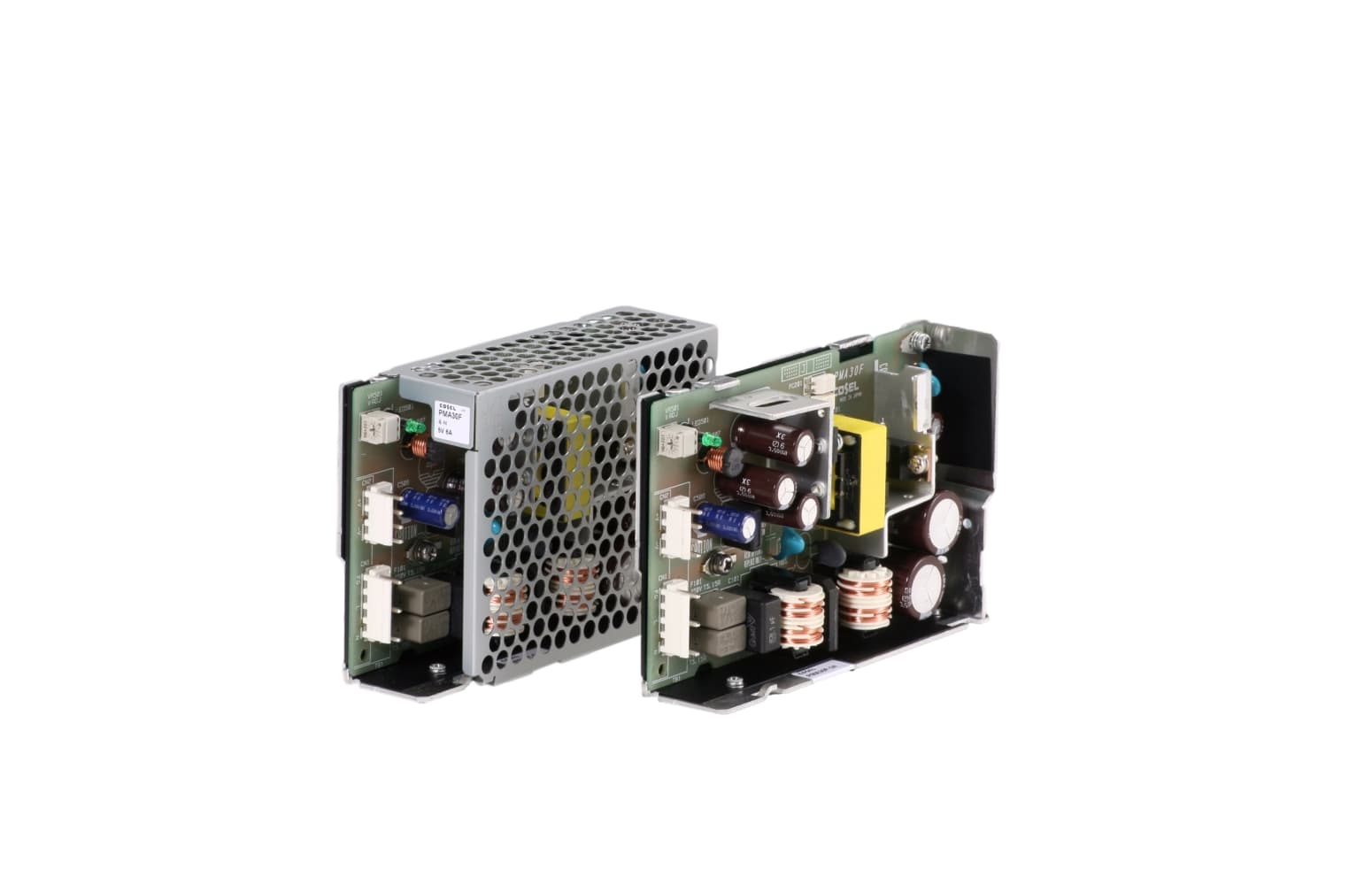

PMA30F

PMA30F

NRND

Options

(For detailed information, please refer to the instruction manual)

  T: Vertical terminal block
  T1: Horizontal terminal block
  N: with Cover
  J1: VH (J.S.T) connector type

Specification is changed at option, refer to Instruction Manual.
string(604) "
PM(1)  A(2)  30(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  T: Vertical terminal block
  T1: Horizontal terminal block
  N: with Cover
  J1: VH (J.S.T) connector type

Specification is changed at option, refer to Instruction Manual."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model (includes N option)
  • 3D CAD Data (IGES)
    • Standard model (includes N option)

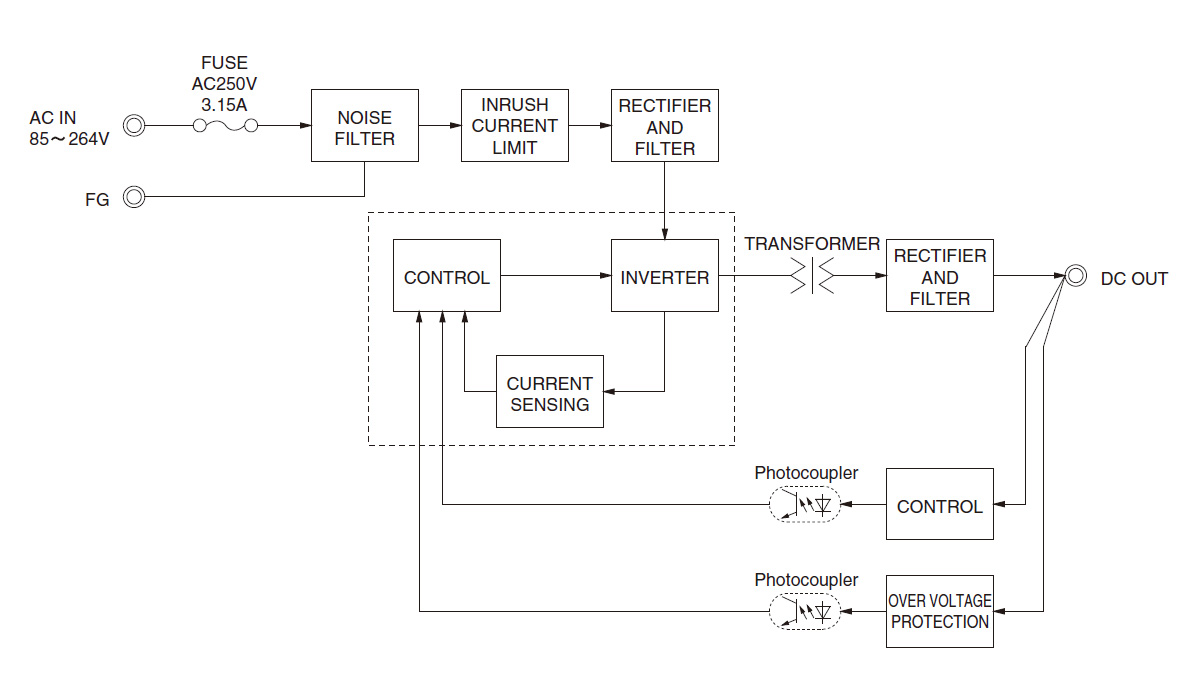

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

PM(1)  A(2)  30(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  T: Vertical terminal block
  T1: Horizontal terminal block
  N: with Cover
  J1: VH (J.S.T) connector type

Specification is changed at option, refer to Instruction Manual.
Basic Specification PMA30F-3R3 PMA30F-5 PMA30F-12 PMA30F-15 PMA30F-24
  Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 3.3V 6A 5V 6A 12V 2.5A 15V 2A 24V 1.3A
Output Power 19.8W 30W 31.2W
Output Voltage Adj Range 2.85 - 3.60V 4.50 - 5.50V 10.00 - 13.20V 13.20 - 18.00V 19.20 - 27.00V
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) -10 to +70℃, 20 - 90%RH (Non condensing)
Cooling Method Convection Convection
Dimensions (W x H x D) 31x82x120mm 31x82x120mm
Safety Agency Approvals UL60601-1, C-UL (CSA-C22.2 No.601.1) , EN60601-1 UL60601-1, C-UL (CSA-C22.2 No.601.1) , EN60601-1
Technical Data PMA30F-3R3 PMA30F-5 PMA30F-12 PMA30F-15 PMA30F-24
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
