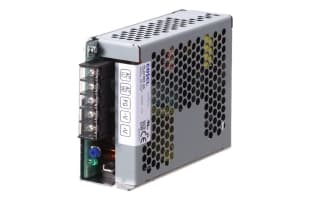

PLA150F

PLA150F

To Be Discontinued

Options

(For detailed information, please refer to the instruction manual)

   C: with Coating
   R: with Remote ON/OFF (Required external power source)
   J: Connector interface
   T: Vertical terminal block
   L: Lower power consumption (0.5W max at AC240Vin, no load, ErP-compliant)
   N1: with DIN rail

See 5.1 in Instruction Manual.
string(753) "
PL(1)  A(2)  150(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
   C: with Coating
   R: with Remote ON/OFF (Required external power source)
   J: Connector interface
   T: Vertical terminal block
   L: Lower power consumption (0.5W max at AC240Vin, no load, ErP-compliant)
   N1: with DIN rail

See 5.1 in Instruction Manual."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

PL(1)  A(2)  150(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
   C: with Coating
   R: with Remote ON/OFF (Required external power source)
   J: Connector interface
   T: Vertical terminal block
   L: Lower power consumption (0.5W max at AC240Vin, no load, ErP-compliant)
   N1: with DIN rail

See 5.1 in Instruction Manual.
Basic Specification PLA150F-12 PLA150F-15 PLA150F-24 PLA150F-36 PLA150F-48
  Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 12V 12.5A 15V 10A 24V 6.4A 36V 4.2A 48V 3.2A
Output Power 150W 153.6W 151.2W 153.6W
Output Voltage Adj Range 10.80 - 13.20V 13.50 - 16.50V 21.60 - 26.40V 32.40 - 39.60V 43.20 - 52.80V
Operating Temp (°C) -20 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing) -20 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing)
Cooling Method Convection Convection
Dimensions (W x H x D) 41x97x129mm (Excluding terminal block and screw) 41x97x129mm (Excluding terminal block and screw)
Safety Agency Approvals UL62368-1, C-UL (CSA62368-1) , EN62368-1,
UL508 (Except option -J) Complies with DEN-AN		 UL62368-1, C-UL (CSA62368-1) , EN62368-1,
UL508 (Except option -J) Complies with DEN-AN
Technical Data PLA150F-12 PLA150F-15 PLA150F-24 PLA150F-36 PLA150F-48
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
