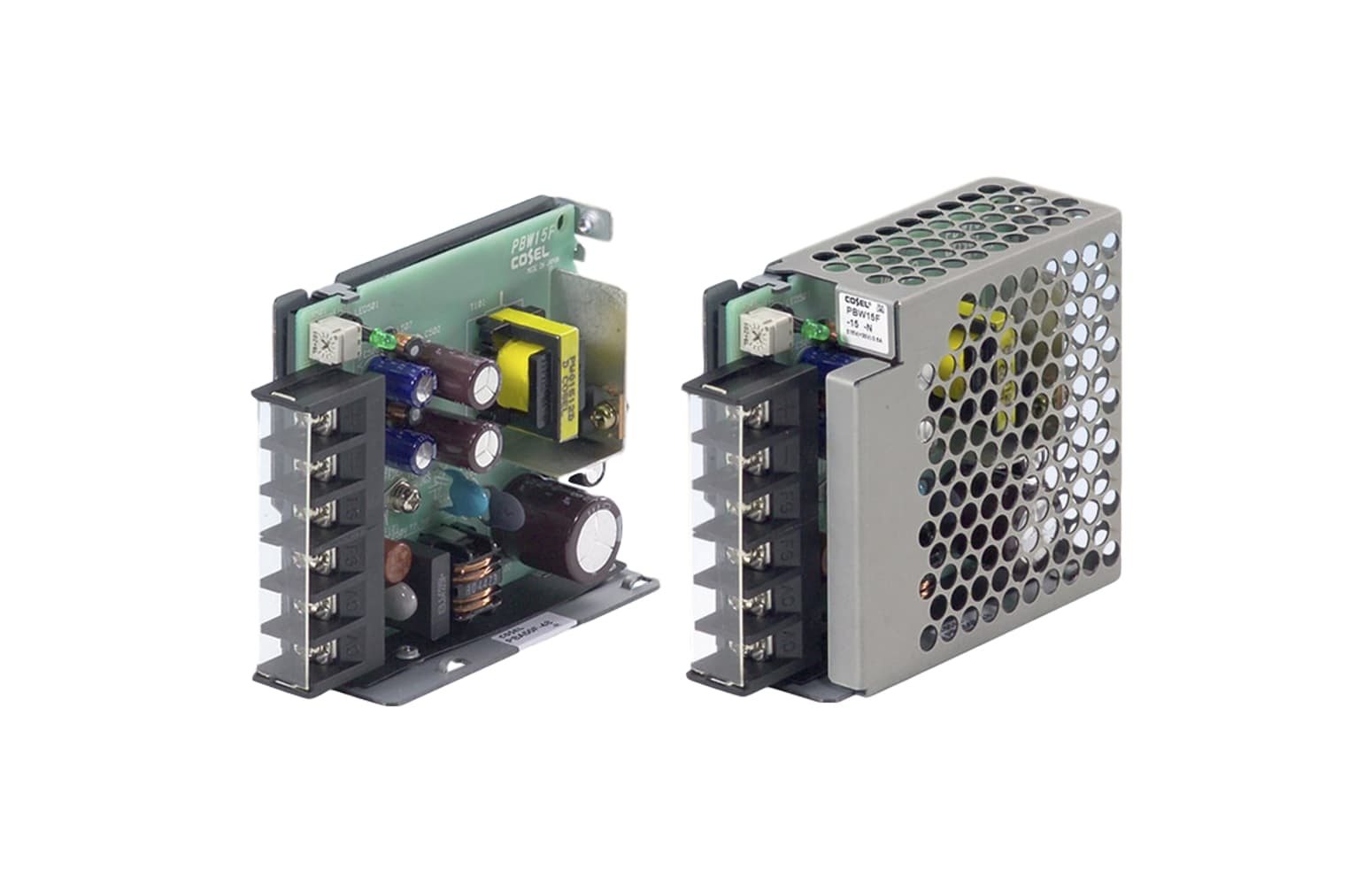

PBW15F
NRND
Options
PB(1) W(2) 15(3) F(4) - □(5) - □(6)
(1) Series name(2) Dual output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
G: Low leakage current
E: Low leakage current and EMI class A
T: Vertical terminal block
J1: VH (J.S.T.) connector type
N: with Cover
N1: with DIN rail
V: Output voltage setting potentiometer externally
| Basic Specification | PBW15F-12 | PBW15F-15 |
|---|---|---|
| Check Stock | Check Stock | |
| Input Voltage Range | AC85 - 264V 1Φ or DC110 - 370V (AC50 or DC70 Please refer to the instruction manual) | |
| Output Voltage / Current | ±12V (+24V) Rated Current1: 0.7A Rated Current2: 1.4A * (CURRENT2) |
±15V (+30V) Rated Current1: 0.5A Rated Current2: 1.0A * |
| Output Power | 16.8W | 15.0W |
| Output Voltage Adj Range | Refer to datasheet | |
| Operating Temp (°C) | -10 to +71℃ (Required Derating) , 20 - 90%RH (Non condensing) | |
| Cooling Method | Convection | |
| Dimensions (W x H x D) | 31x78x85mm (without terminal block) | |
| Safety Agency Approvals | UL60950-1, C-UL (CSA60950-1) , EN62368-1, Complies with DEN-AN |
|
| Technical Data | PBW15F-12 | PBW15F-15 |
| Performance Data | ||
| EMC Data | ||
| Expected Life | ||
| MTBF | ||
| Reliability Data | ||
