PRODUCTS AC-DC PBA SERIES PBA10F
Enquire

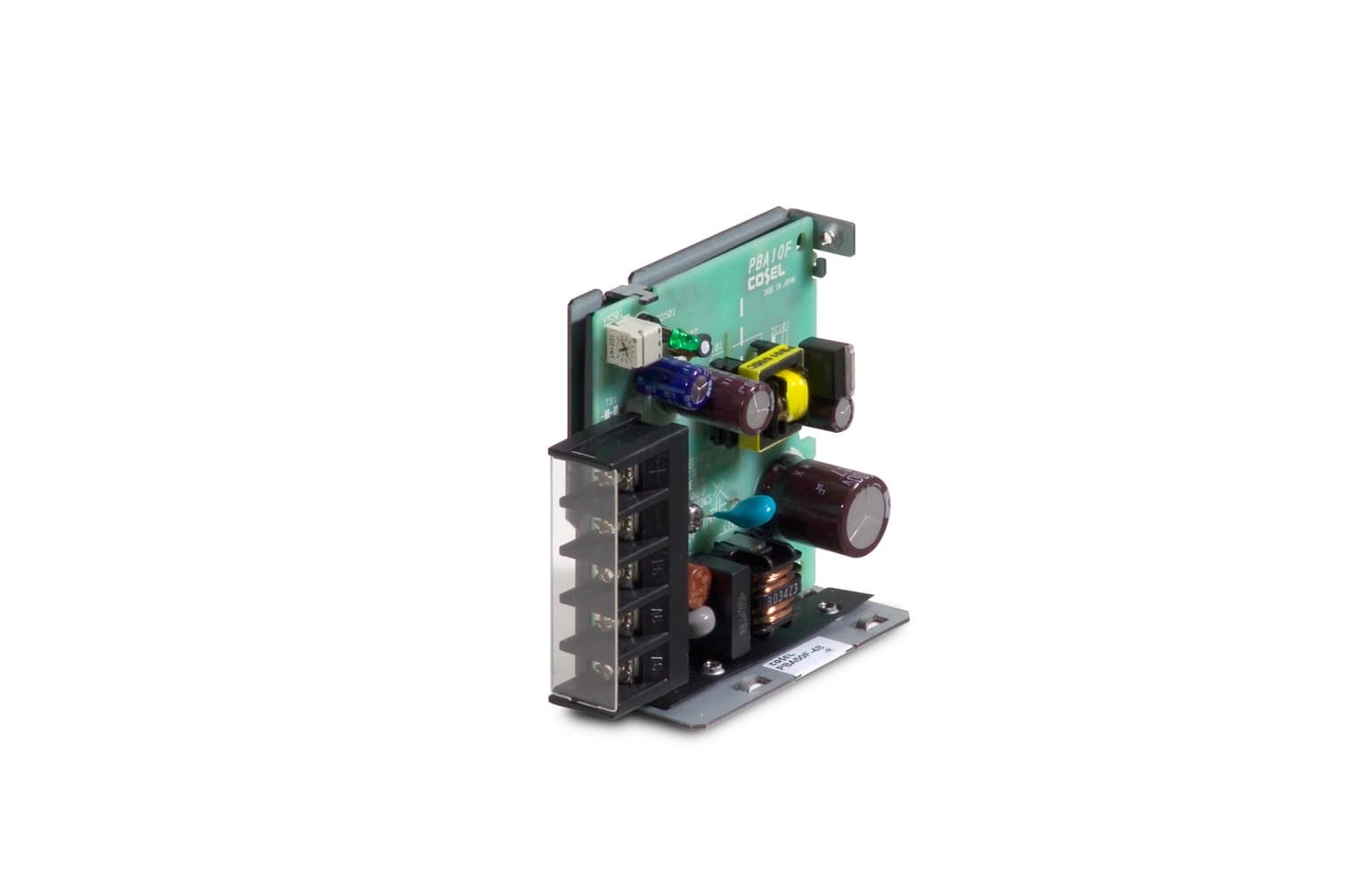

PBA10F

PBA10F

NRND

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  E: Low leakage current and EMI class A
  T: Vertical terminal block
  J1: VH (J.S.T.) connector type
  N: with Cover (UL508 is acquired)
  N1: with DIN rail and Cover
  V: Output voltage setting potentiometer externally
string(744) "
PB(1)  A(2)  10(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  E: Low leakage current and EMI class A
  T: Vertical terminal block
  J1: VH (J.S.T.) connector type
  N: with Cover (UL508 is acquired)
  N1: with DIN rail and Cover
  V: Output voltage setting potentiometer externally"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Additional Technical Documents

  • Redundancy Operation
  • Output Voltage Adjustment
  • Constant Current Circuit
  • Constant Voltage Circuit
  • Remote On/Off Circuit
  • Alarm Circuit Example
  • Reverse Polarity Circuit Example



Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model (includes N option)
  • 3D CAD Data (IGES)
    • Standard model (includes N option)
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

PB(1)  A(2)  10(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  E: Low leakage current and EMI class A
  T: Vertical terminal block
  J1: VH (J.S.T.) connector type
  N: with Cover (UL508 is acquired)
  N1: with DIN rail and Cover
  V: Output voltage setting potentiometer externally
Basic Specification PBA10F-5 PBA10F-12 PBA10F-24
  Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC110 - 370V
Output Voltage / Current 5V 2A 12V 0.9A 24V 0.5A
Output Power 10W 10.8W 12W
Output Voltage Adj Range 4.50 - 5.50V 10.0 - 13.2V 19.2 - 27.0V
Operating Temp (°C) -10 to +71℃ (Required Derating) , 20 - 90%RH (Non condensing)
Cooling Method Convection
Dimensions (W x H x D) 31x78x68mm (without terminal block)
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1
Complies with DEN-AN
Technical Data PBA10F-5 PBA10F-12 PBA10F-24
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
