LHA100F

LHA100F

Key Product Features

  • Basic Function AC-DC Power Supply
  • Cost Effective
  • Open Frame or With Cover/Chassis
  • Various Additional Options
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • < 1U High
  • Leakage Current <0.5mA

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  J4: EP (TE　Connectivity) connector type
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Please refer to Instruction manual 6.
3D product images are available.

Read Me First
Standard model    SN：with chassis & cover
string(1234) "
LH(1)  A(2)  100(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J4: EP (TE　Connectivity) connector type
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Please refer to Instruction manual 6.
3D product images are available.

 Read Me First
 Standard model    SN：with chassis & cover"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
    • SN:with Chassis and cover
  • 3D CAD Data (IGES)
    • Standard model
    • SN:with Chassis and cover

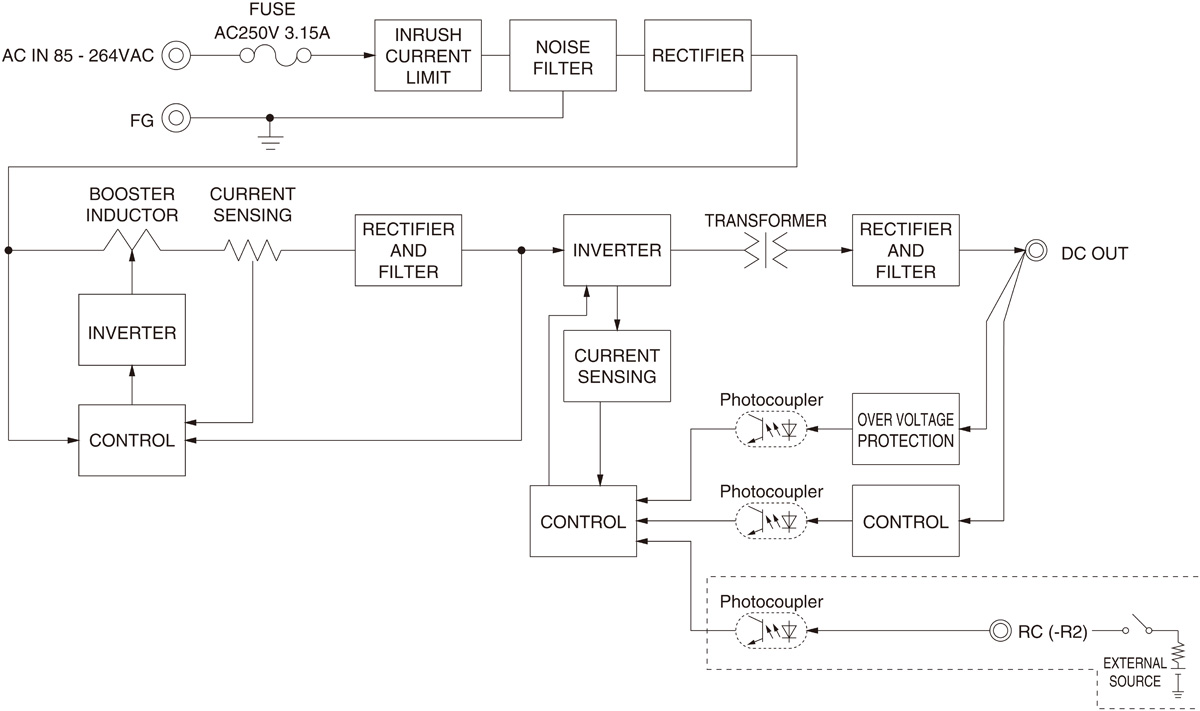

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LH(1)  A(2)  100(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J4: EP (TE　Connectivity) connector type
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Please refer to Instruction manual 6.
3D product images are available.

Read Me First
Standard model   SN：with chassis & cover
Basic Specification LHA100F-5 LHA100F-12 LHA100F-15 LHA100F-24 LHA100F-36 LHA100F-48
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 5V 15A 12V 8.5A 15V 6.7A 24V 4.3A 36V 2.8A 48V 2.1A
Output Power 75W 102W 100.5W 103.2W 100.8W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection/Forced air * Convection/Forced air *
Dimensions (W x H x D) 62x27x155mm 62x27x155mm
Safety Agency Approvals UL62368-1, C-UL （equivalent to CAN/CSA-C22.2 No.62368-1） , EN62368-1 * UL62368-1, C-UL （equivalent to CAN/CSA-C22.2 No.62368-1） , EN62368-1 *
Technical Data LHA100F-5 LHA100F-12 LHA100F-15 LHA100F-24 LHA100F-36 LHA100F-48
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
