LFP100F

NRND

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  J1: VH (J.S.T.) conneclor type
  R: with Remote ON/OFF
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover

Please refer to Instruction manual 6.
string(684) "

LF(1)  P(2)  100(3)  F(4)  -  (5)  -  (6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J1: VH (J.S.T.) conneclor type
  R: with Remote ON/OFF
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover

Please refer to Instruction manual 6."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

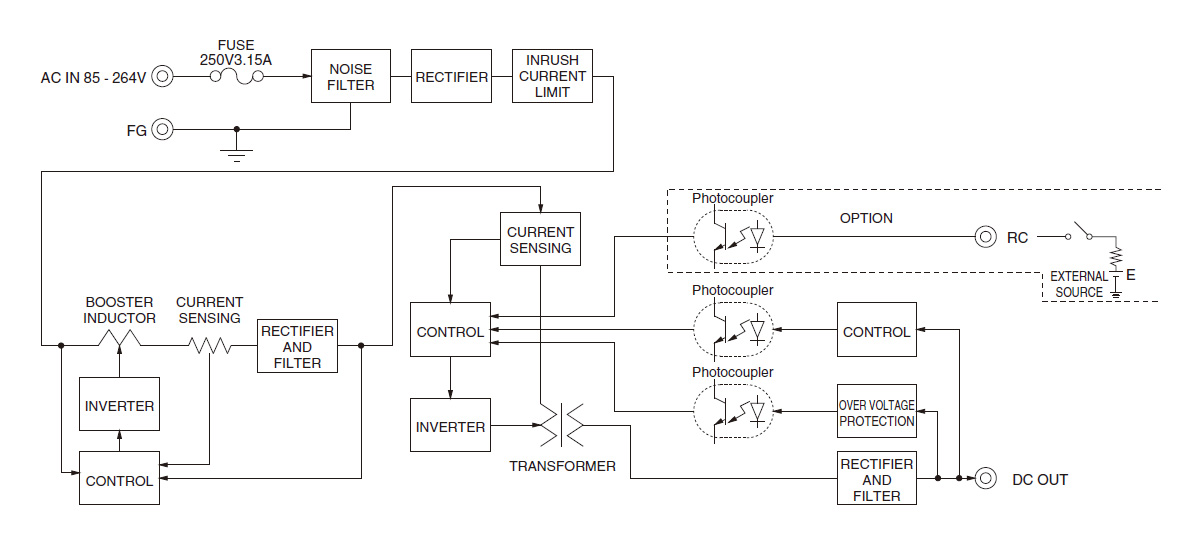

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LF(1)  P(2)  100(3)  F(4)  -  (5)  -  (6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J1: VH (J.S.T.) conneclor type
  R: with Remote ON/OFF
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover

Please refer to Instruction manual 6.
Basic Specification LFP100F-24-Y LFP100F-36-Y LFP100F-48-Y
  Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ
Output Voltage / Current 24V 4.3A (Peak :8.6A) 36V 2.8A (Peak :5.6A) 48V 2.1A (Peak :4.2A)
Output Power 103.2W (206.4W) 100.8W (201.6W)
Output Voltage Adj Range 21.60 - 27.50V 32.40 - 39.60V 39.60 - 52.80V
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection (Refer to Instruction Manual 3.1 and 3.2) *
Dimensions (W x H x D) 62x33x155mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 Complies with DEN-AN
Technical Data LFP100F-24-Y LFP100F-36-Y LFP100F-48-Y
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
