LFA30F

LFA30F

NRND

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  J1: VH (J.S.T.) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Specification is changed at option, refer to Instruction Manual.
string(670) "
LF(1)  A(2)  30(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J1: VH (J.S.T.) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Specification is changed at option, refer to Instruction Manual."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model (includes SN option)
  • 3D CAD Data (IGES)
    • Standard model (includes SN option)

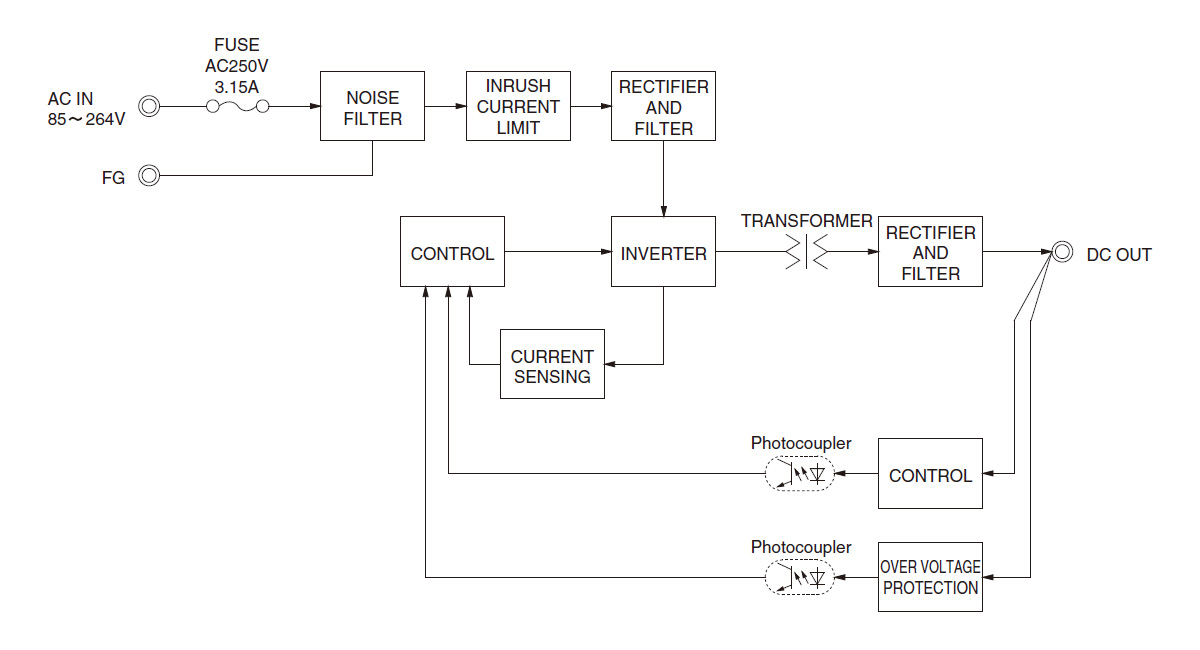

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LF(1)  A(2)  30(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J1: VH (J.S.T.) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Specification is changed at option, refer to Instruction Manual.
Basic Specification LFA30F-3R3-Y LFA30F-5 LFA30F-12 LFA30F-15 LFA30F-24
  Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 3.3V 6A 5V 6A 12V 2.5A 15V 2A 24V 1.3A
Output Power 19.8W 30.0W 31.2W
Output Voltage Adj Range 2.85 - 3.63V Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection (Refer to Instruction Manual 3.1 and 3.2) * Convection (Refer to Instruction Manual 3.1 and 3.2) *
Dimensions (W x H x D) 50x26.5x105mm 50x26.5x105mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 Complies with DEN-AN UL60950-1, C-UL (CSA60950-1) , EN62368-1 Complies with DEN-AN
Technical Data LFA30F-3R3-Y LFA30F-5 LFA30F-12 LFA30F-15 LFA30F-24
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
