PRODUCTS AC-DC LFA SERIES LFA240F
Enquire

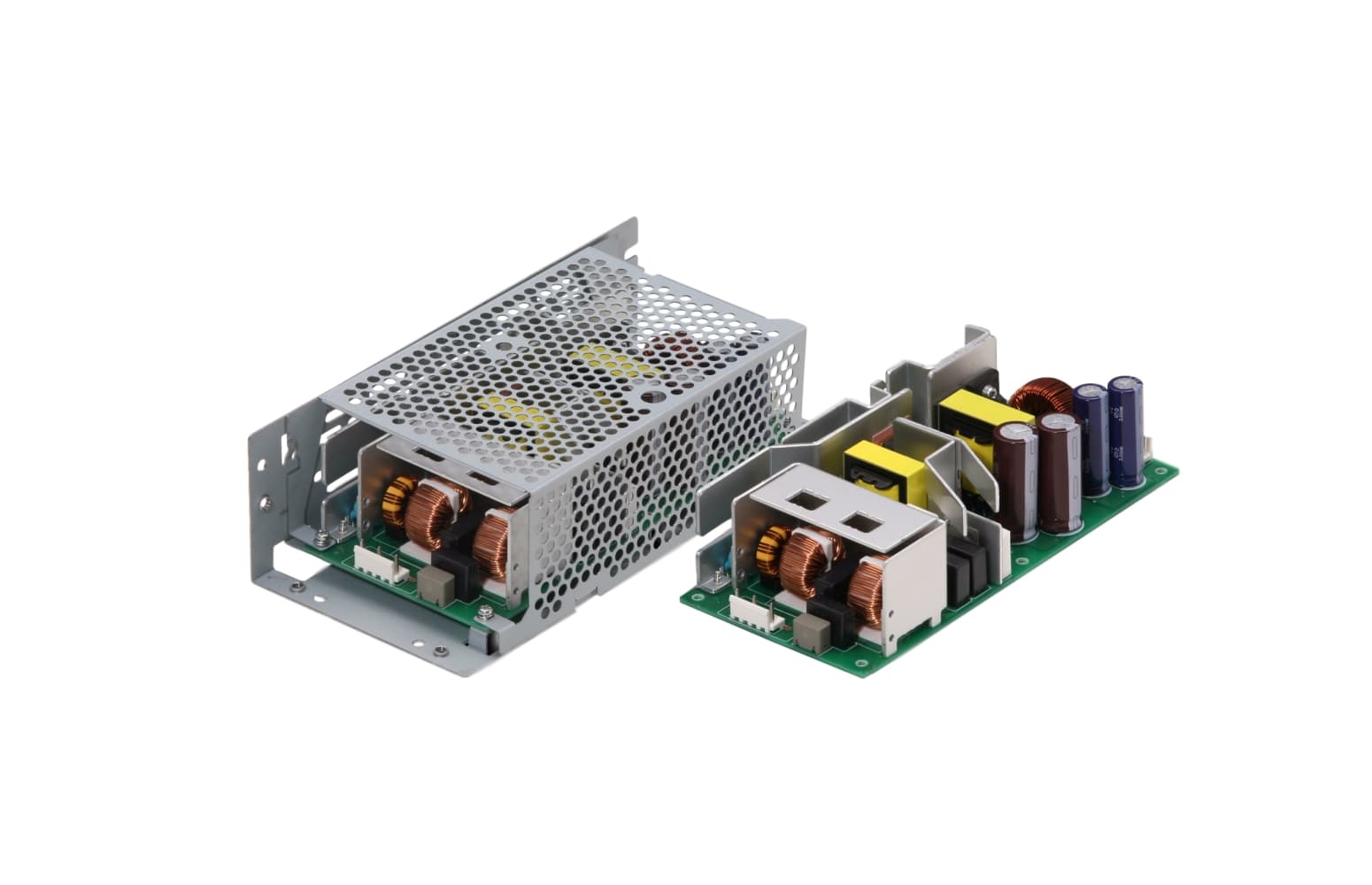

LFA240F

LFA240F

NRND

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
  J1: VH (J.S.T.) connector type
  R: with Remote ON/OFF
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  T: Vertical terminal block
  Y: with Potentiometer
Please refer to Instruction manual 5.
string(850) "
LF(1)  A(2)  240(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
  J1: VH (J.S.T.) connector type
  R: with Remote ON/OFF
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  T: Vertical terminal block
  Y: with Potentiometer
Please refer to Instruction manual 5."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model (includes SN option)
  • 3D CAD Data (IGES)
    • Standard model (includes SN option)

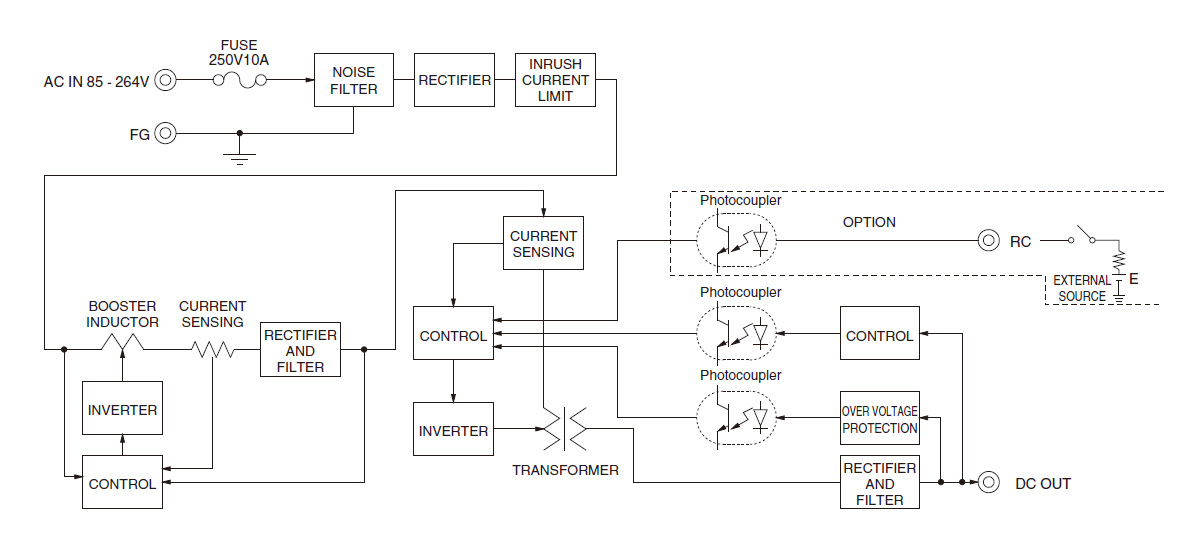

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LF(1)  A(2)  240(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
  J1: VH (J.S.T.) connector type
  R: with Remote ON/OFF
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  T: Vertical terminal block
  Y: with Potentiometer
Please refer to Instruction manual 5.
Basic Specification LFA240F-24 LFA240F-24-H LFA240F-36 LFA240F-48
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 24V 10A 24V 10A (Peak: 12.5A) 36V 6.7A 48V 5A
Output Power 240W 240W (300W) 241.2W 240W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection (Refer to Instruction Manual 3.1 and 3.2) * Convection (Refer to Instruction Manual 3.1 and 3.2) *
Dimensions (W x H x D) 84x46.5x180mm 84x46.5x180mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 Complies with DEN-AN UL60950-1, C-UL (CSA60950-1) , EN62368-1 Complies with DEN-AN
Technical Data LFA240F-24 LFA240F-24-H LFA240F-36 LFA240F-48
Performance Data On request
EMC Data On request
Expected Life N/A
MTBF On request
Reliability Data
