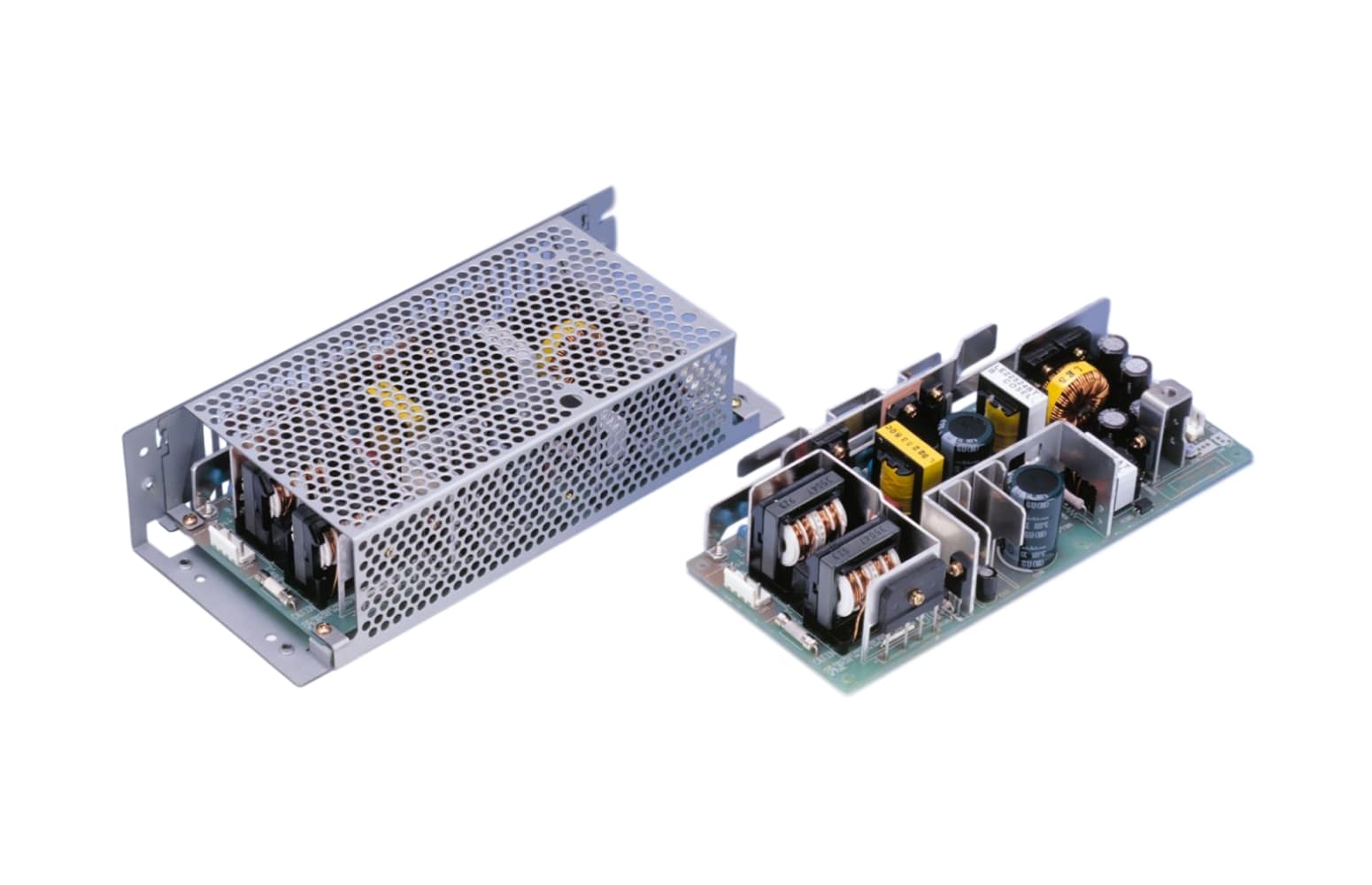

LEB225F

LEB225F

Discontinued

This series will be discontinued in Sep 2023.

Options

(For detailed information, please refer to the instruction manual)

  G: Low leakage current
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  T: Vertical terminal block
  Y: with Potentiometer
  Z: with ZT
string(624) "
LEB(1)  225(2)  F(3)  -  05(4)  24(5)  -  □(6)
(1) Series name
(2) Output wattage
(3) Universal input
(4) V1 output voltage
(5) V2 output voltage
(6) Optional
  G: Low leakage current
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  T: Vertical terminal block
  Y: with Potentiometer
  Z: with ZT"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LEB(1)  225(2)  F(3)  -  05(4)  24(5)  -  □(6)

(1) Series name
(2) Output wattage
(3) Universal input
(4) V1 output voltage
(5) V2 output voltage
(6) Optional
  G: Low leakage current
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  T: Vertical terminal block
  Y: with Potentiometer
  Z: with ZT
Basic Specification LEB225F-0324 LEB225F-0512 LEB225F-0524 LEB225F-0530 LEB225F-0536
  Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC 120 - 370V AC85 - 264V 1Φ or DC 120 - 370V
Output Voltage / Current V1: +3.3V 5A
V2: +24V 9A (Peak: 14A) 		V1: +5V 5A
V2: +12V 10A (Peak: 20A) 		V1: +5V 5A
V2: +24V 9A (Peak: 14A) 		V1: +5V 5A
V2: +30V 7.2A (Peak: 11A) 		V1: +5V 5A
V2: +36V 6A (Peak: 9.3A)
Output Power 225W (Peak: 345W) 145W (Peak: 265W) 225W (Peak: 345W)
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection Convection
Dimensions (W x H x D) 95x45x222mm 95x45x222mm
Safety Agency Approvals UL60950-1, C-UL, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, C-UL, EN62368-1 Complies with DEN-AN and IEC60950-1
Technical Data LEB225F-0324 LEB225F-0512 LEB225F-0524 LEB225F-0530 LEB225F-0536
Performance Data On request On request On request
EMC Data On request On request On request
Expected Life N/A N/A N/A
MTBF On request On request On request
Reliability Data
