PRODUCTS AC-DC LEA SERIES LEA50F
Enquire

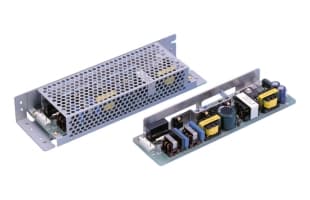

LEA50F

LEA50F

Discontinued

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  J2: Mini terminal block
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
string(642) "
LEA(1)  50(2)  F(3)  -  5(4)  -  □(5)
(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional *
  C: with Coating
  G: Low leakage current
  J2: Mini terminal block
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LEA(1)  50(2)  F(3)  -  5(4)  -  □(5)

(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional *
  C: with Coating
  G: Low leakage current
  J2: Mini terminal block
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
Basic Specification LEA50F-3R3-Y LEA50F-5 LEA50F-9 LEA50F-12 LEA50F-15 LEA50F-18 LEA50F-24 LEA50F-24-H LEA50F-30 LEA50F-48
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC120 - 370V AC85 - 264V 1Φ or DC120 - 370V AC85 - 264V 1Φ or DC120 - 370V AC85 - 264V 1Φ or DC120 - 370V
Output Voltage / Current 3.3V 10A 5V 10A 9V 5.6A 12V 4.3A 15V 3.5A 18V 2.8A 24V 2.1A 24V 2.1A (Peak: 2.6A) 30V 1.7A 48V 1.1A
Output Power 33W 50W 50.4W 51.6W 52.5W 50.4W 51W 52.8W
Output Voltage Adj Range 2.85 - 3.6V Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 55x26x195mm 55x26x195mm 55x26x195mm 55x26x195mm
Safety Agency Approvals UL60950-1, C-UL, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, C-UL, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, C-UL, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, C-UL, EN62368-1 Complies with DEN-AN and IEC60950-1
Technical Data LEA50F-3R3-Y LEA50F-5 LEA50F-9 LEA50F-12 LEA50F-15 LEA50F-18 LEA50F-24 LEA50F-24-H LEA50F-30 LEA50F-48
Performance Data On request On request On request On request On request
EMC Data On request
Expected Life N/A
MTBF On request
Reliability Data
