PRODUCTS AC-DC LDA SERIES LDA75F
Enquire

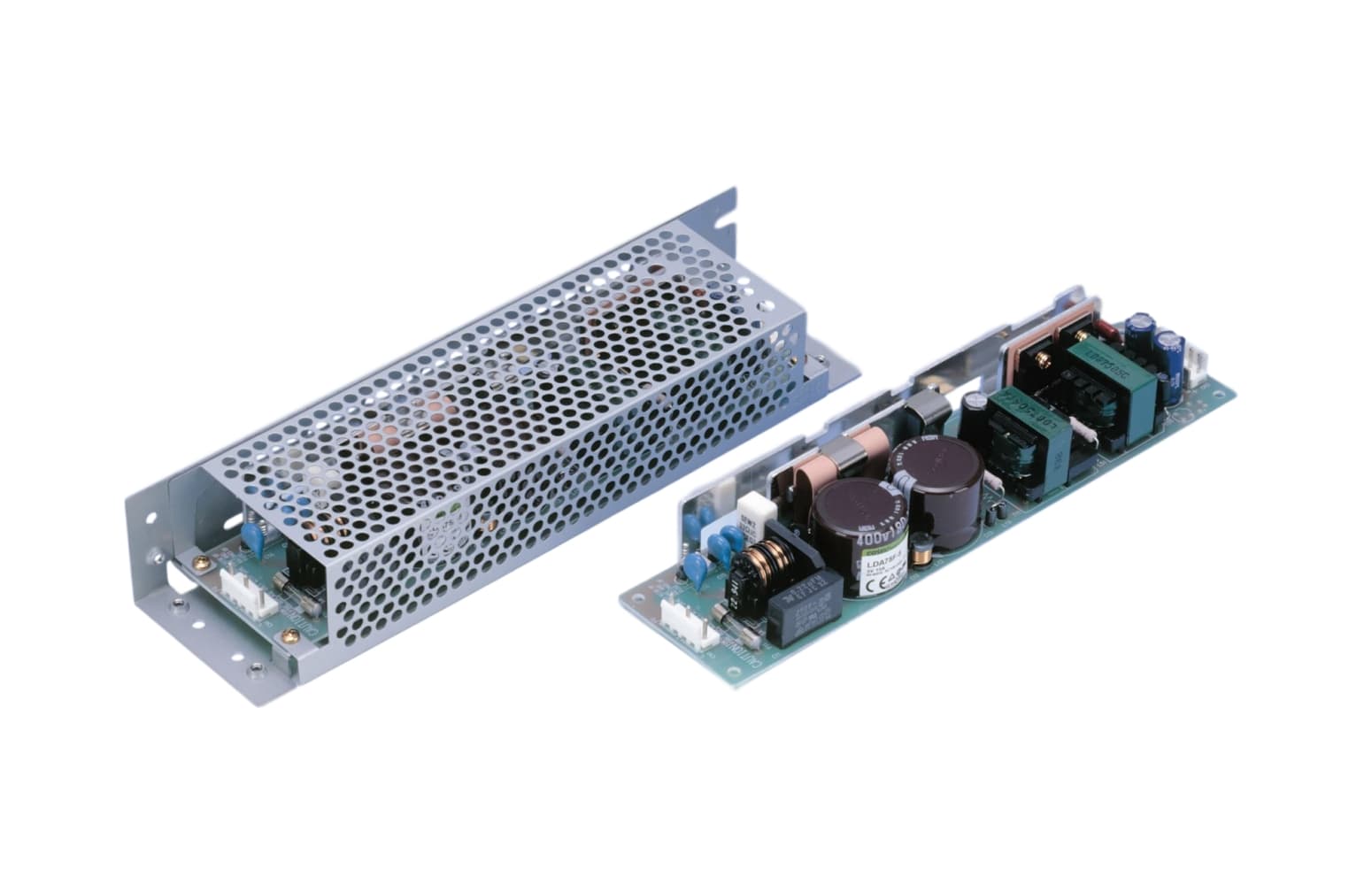

LDA75F

LDA75F

Discontinued

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  L: with LED
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
string(629) "
LDA(1)  75(2)  F(3)  -  5(4)  -  □(5)
(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional*
  C: with Coating
  G: Low leakage current
  L: with LED
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LDA(1)  75(2)  F(3)  -  5(4)  -  □(5)

(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional*
  C: with Coating
  G: Low leakage current
  L: with LED
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
Basic Specification LDA75F-3 LDA75F-5 LDA75F-9 LDA75F-12 LDA75F-15 LDA75F-18 LDA75F-24 LDA75F-24-H LDA75F-24-HR LDA75F-30
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC110 - 370V AC85 - 264V 1Φ or DC110 - 370V AC85 - 264V 1Φ or DC110 - 370V AC85 - 264V 1Φ or DC110 - 370V
Output Voltage / Current 3V 15A 5V 15A 9V 8.5A 12V 6.3A 15V 5A 18V 4.2A 24V 3.2A 24V 3.2A (Peak: 4.5A) 30V 2.5A
Output Power 45W 75W 76.5W 75.6W 75W 75.6W 76.8W 75W
Output Voltage Adj Range 2.85 - 3.6V Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +60℃, 20 - 90%RH (Non condensing) * -10 to +60℃, 20 - 90%RH (Non condensing) * -10 to +60℃, 20 - 90%RH (Non condensing) * -10 to +60℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 55x32x222mm 55x32x222mm 55x32x222mm 55x32x222mm
Safety Agency Approvals UL60950-1, CSA C22.2 No.60950-1, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, CSA C22.2 No.60950-1, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, CSA C22.2 No.60950-1, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, CSA C22.2 No.60950-1, EN62368-1 Complies with DEN-AN and IEC60950-1
Technical Data LDA75F-3 LDA75F-5 LDA75F-9 LDA75F-12 LDA75F-15 LDA75F-18 LDA75F-24 LDA75F-24-H LDA75F-24-HR LDA75F-30
Performance Data On request
EMC Data On request On request
Expected Life N/A N/A
MTBF On request On request
Reliability Data
