PRODUCTS AC-DC LCA SERIES LCA30S
Enquire

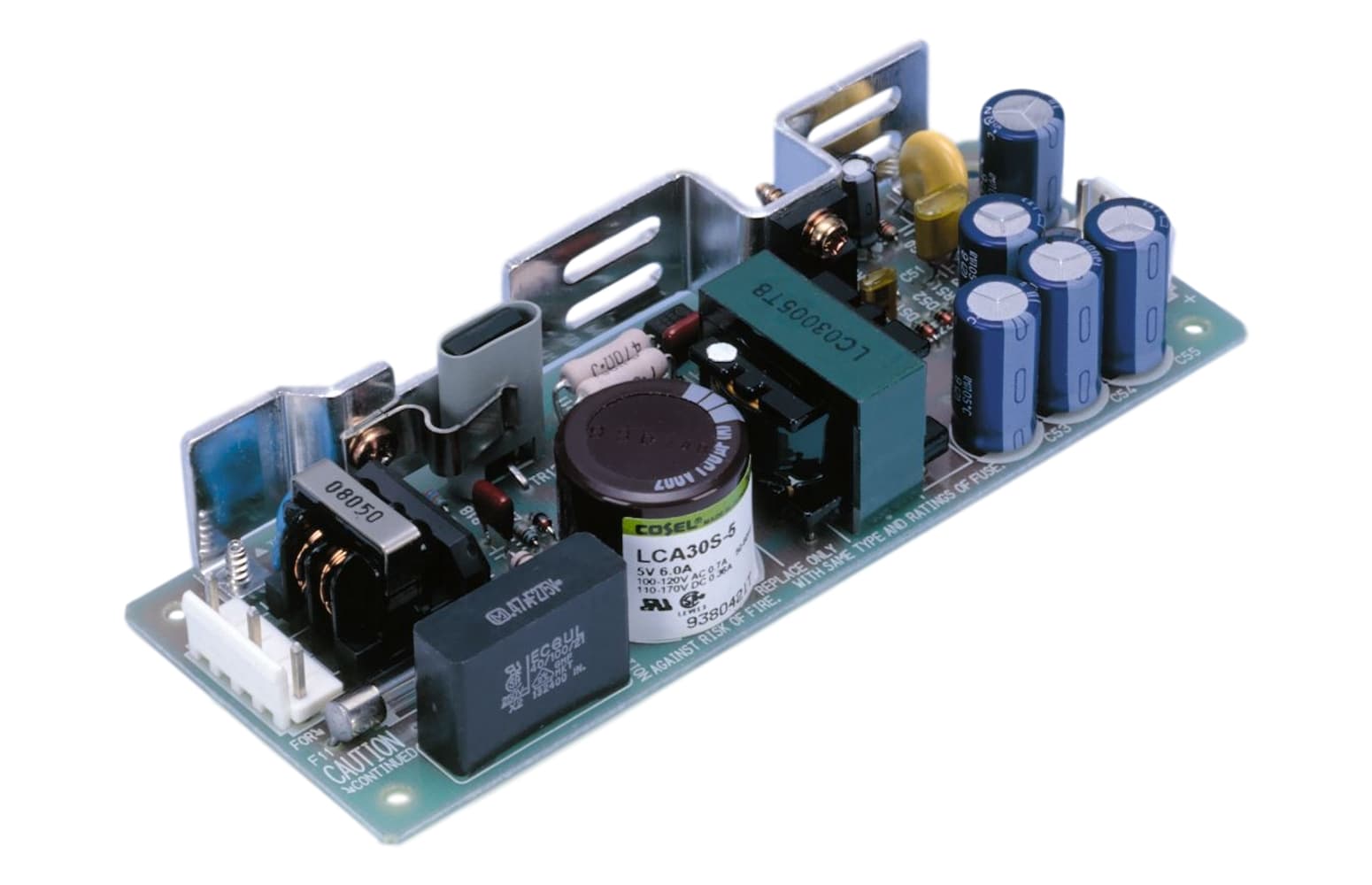

LCA30S

LCA30S

Discontinued

Discontinuation is announced in May 2019 and orders will be accepted until 20th April 2020.  For alternative open frame products, please see Open Frame AC-DC products.

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
string(535) "
LC(1)  A(2)  30(3)  S(4)  -  5(5)  -  □(6)
(1) Series name
(2) 100/120V input
(3) Output wattage
(4) Single output
(5) Output voltage
(6) Optional *
  C: with Coating
  G: Low leakage current
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

LC(1)  A(2)  30(3)  S(4)  -  5(5)  -  □(6)

(1) Series name
(2) 100/120V input
(3) Output wattage
(4) Single output
(5) Output voltage
(6) Optional *
  C: with Coating
  G: Low leakage current
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
Basic Specification LCA30S-3 LCA30S-5 LCA30S-12 LCA30S-15 LCA30S-24 LCA30S-36 LCA30S-48
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V
Output Voltage / Current 3V 6A 5V 6A 12V 2.5A 15V 2A 24V 1.3A 36V 0.9A 48V 0.7A
Output Power 18W 30W 31.2W 32.4W 33.6W
Output Voltage Adj Range 2.85 - 3.6V Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +60℃, 20 - 90%RH (Non condensing) * -10 to +60℃, 20 - 90%RH (Non condensing) * -10 to +60℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection Convection Convection
Dimensions (W x H x D) 50x25x132.5mm 50x25x132.5mm 50x25x132.5mm
Safety Agency Approvals UL60950-1, CSA C22.2 No.60950-1 Complies with DEN-AN UL60950-1, CSA C22.2 No.60950-1 Complies with DEN-AN UL60950-1, CSA C22.2 No.60950-1 Complies with DEN-AN
Technical Data LCA30S-3 LCA30S-5 LCA30S-12 LCA30S-15 LCA30S-24 LCA30S-36 LCA30S-48
Performance Data
EMC Data On request On request On request On request On request On request On request
Expected Life
MTBF
Reliability Data


⌅
