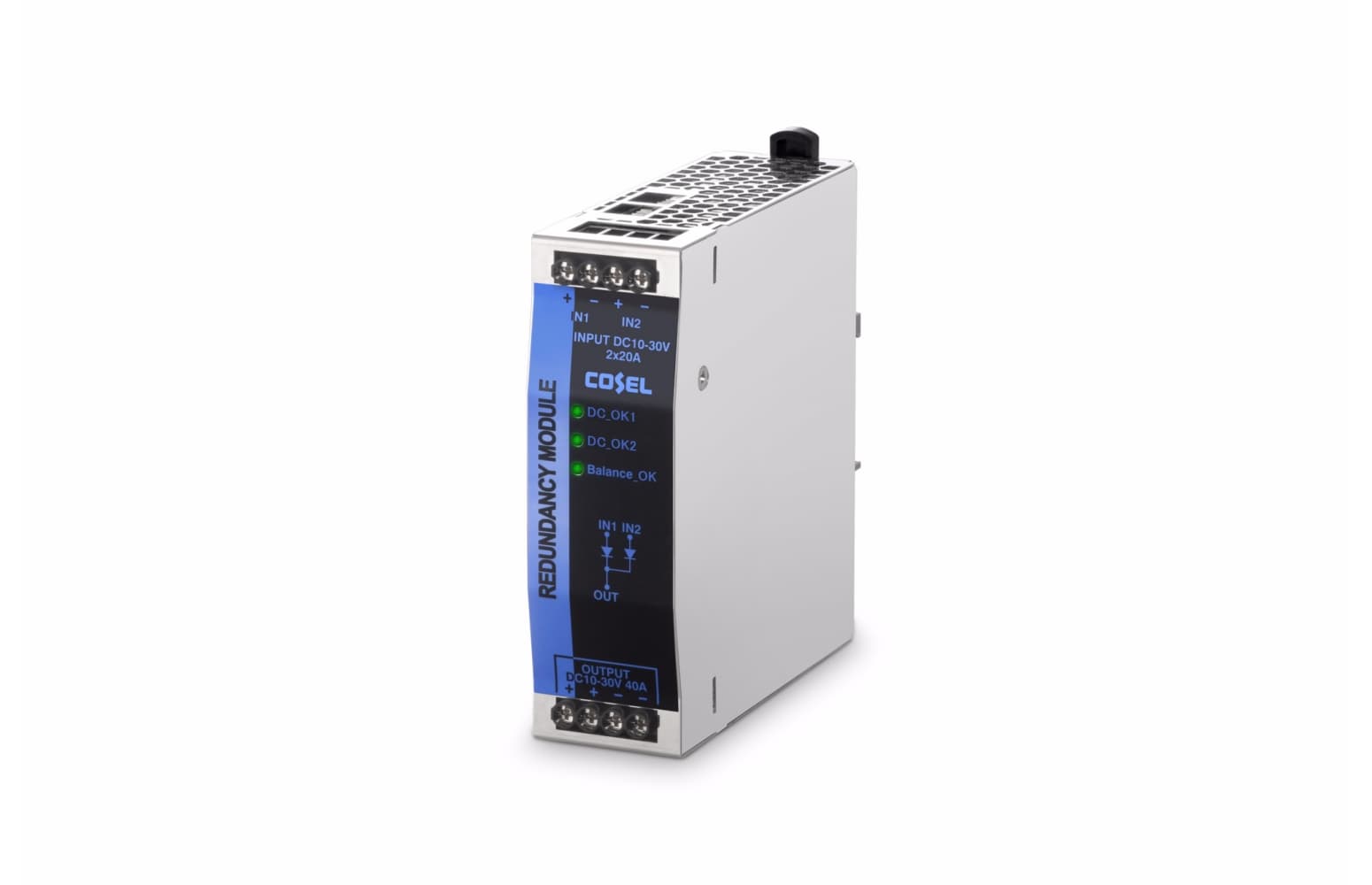

KRE-40A

Key Product Features

  • Redundancy Module
  • Ultra Slim Dimensions
  • DC OK & Balance OK Indicators
  • Pair with KH & KL Series
  • 5 Year Warranty
  • EN & UL Approved

Options

(For detailed information, please refer to the instruction manual)

KRE(1)  -  A(2)

(1) Series name
  KRE: Euro style I/O terminals
(2) Output current
string(198) "

KRE(1)  -  A(2)

(1) Series name
  KRE: Euro style I/O terminals
(2) Output current"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

KRE(1)  -  A(2)

(1) Series name
  KRE: Euro style I/O terminals
(2) Output current
Basic Specification KRE-40A
  Check Stock
Input Voltage Range DC10 - 30V
Output Voltage / Current 10 - 30V 40A
Output Power
Output Voltage Adj Range -
Operating Temp (°C) -25 to +70℃ (Required to Derating) , 20 - 90%RH (Non condensing)
Cooling Method Convection
Dimensions (W x H x D) 38x124x117mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1), EN62368-1, UL508
Technical Data KRE-40A
Performance Data On request
EMC Data
Expected Life N/A
MTBF
Reliability Data
