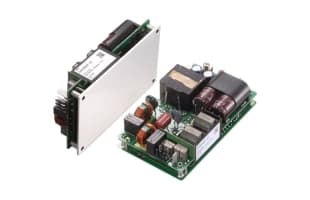

GHA500F

GHA500F

Key Product Features

  • 3 x 5 Medical/Industrial Power Supply
  • 2 x MOPP for Medical Applications
  • Conduction cooling (500W)
  • AUX (5V/12V), Remote On/Off, Alarm
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • < 1U High
  • Alarm
  • Leakage Current <0.5mA
  • Parallel Function
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

 T3: mounting hole M3
 J1: VH (J.S.T.) connector type
 J3:Horizontal input connector
      VH (J.S.T.) connector type
 R3: with Subfeatures (5VAUX, 12VAUX, Remote, Power good)
 P: Pallarel Operation

Specification is changed at option, refer to Instruction manual.
string(740) "
GH(1)  A(2)  500(3)  F(4)  -  □□(5)  -  □(6)


(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
 T3: mounting hole M3
 J1: VH (J.S.T.) connector type
 J3:Horizontal input connector
      VH (J.S.T.) connector type
 R3: with Subfeatures (5VAUX, 12VAUX, Remote, Power good)
 P: Pallarel Operation

Specification is changed at option, refer to Instruction manual."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

GH(1)  A(2)  500(3)  F(4)  -  □□(5)  -  □(6)


(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
 T3: mounting hole M3
 J1: VH (J.S.T.) connector type
 J3:Horizontal input connector
      VH (J.S.T.) connector type
 R3: with Subfeatures (5VAUX, 12VAUX, Remote, Power good)
 P: Pallarel Operation

Specification is changed at option, refer to Instruction manual.
Basic Specification GHA500F-12 GHA500F-15 GHA500F-24 GHA500F-30 GHA500F-48 GHA500F-56
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC90 - 264V 1Φ AC90 - 264V 1Φ
Output Voltage / Current 12V 41.7A Forced Air Cooling +50℃
12V 12.5A Convection Cooling +40℃
12V 9.2A Convection Cooling +50℃
12V 30A conduction cooling +0℃
12V 16.7A conduction cooling +50℃		 15V 33.4A Forced Air Cooling +50℃
15V 10A Convection Cooling +40℃
15V 7.4A Convection Cooling +50℃
15V 24A conduction cooling +0℃
15V 13.4A conduction cooling +50℃		 24V 21A Forced Air Cooling +50℃
24V 6.3A Convection Cooling +40℃
24V 4.6A Convection Cooling +50℃
24V 15A conduction cooling +0℃
24V 8.4A conduction cooling +50℃		 30V 16.7A Forced Air Cooling +50℃
30V 5A Convection Cooling +40℃
30V 3.7A Convection Cooling +50℃
30V 12A conduction cooling +0℃
30V 6.7A conduction cooling +50℃		 48V 10.5A Forced Air Cooling +50℃
48V 3.2A Convection Cooling +40℃
48V 2.3A Convection Cooling +50℃
48V 7.5A conduction cooling +0℃
48V 4.2A conduction cooling +50℃		 56V 9A Forced Air Cooling +50℃
56V 2.7A Convection Cooling +40℃
56V 1.9A Convection Cooling +50℃
56V 6.4A conduction cooling +0℃
56V 3.6A conduction cooling +50℃
Output Power 500.4W 501W 504W 501W 504W
Output Voltage Adj Range 10.80 - 13.20V 13.50 - 16.50V 21.60 - 26.40V 27.00 - 31.50V 43.20 - 52.80V 52.00 - 56.00V
Operating Temp (°C) -20 to +80℃, 20 - 90%RH (Non condensing) -20 to +80℃, 20 - 90%RH (Non condensing)
Cooling Method Convection, Forced air (Require external fan) , Conduction cooling Convection, Forced air (Require external fan) , Conduction cooling
Dimensions (W x H x D) 76.2x35x127mm 76.2x35x127mm
Safety Agency Approvals UL60950-1, ANSI/AAMI ES60601-1, C-UL (CSA60950-1, CAN/CSA60601-1) , EN60601-1 3rd, EN62368-1 UL60950-1, ANSI/AAMI ES60601-1, C-UL (CSA60950-1, CAN/CSA60601-1) , EN60601-1 3rd, EN62368-1
