Options
FET(1) A(2) 3000(3) B(4) C(5) - □□(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) 200/230V input
(5) Version
(6) Output voltage

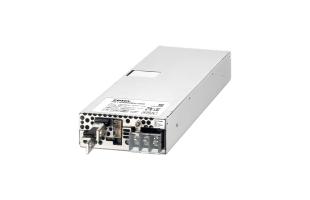

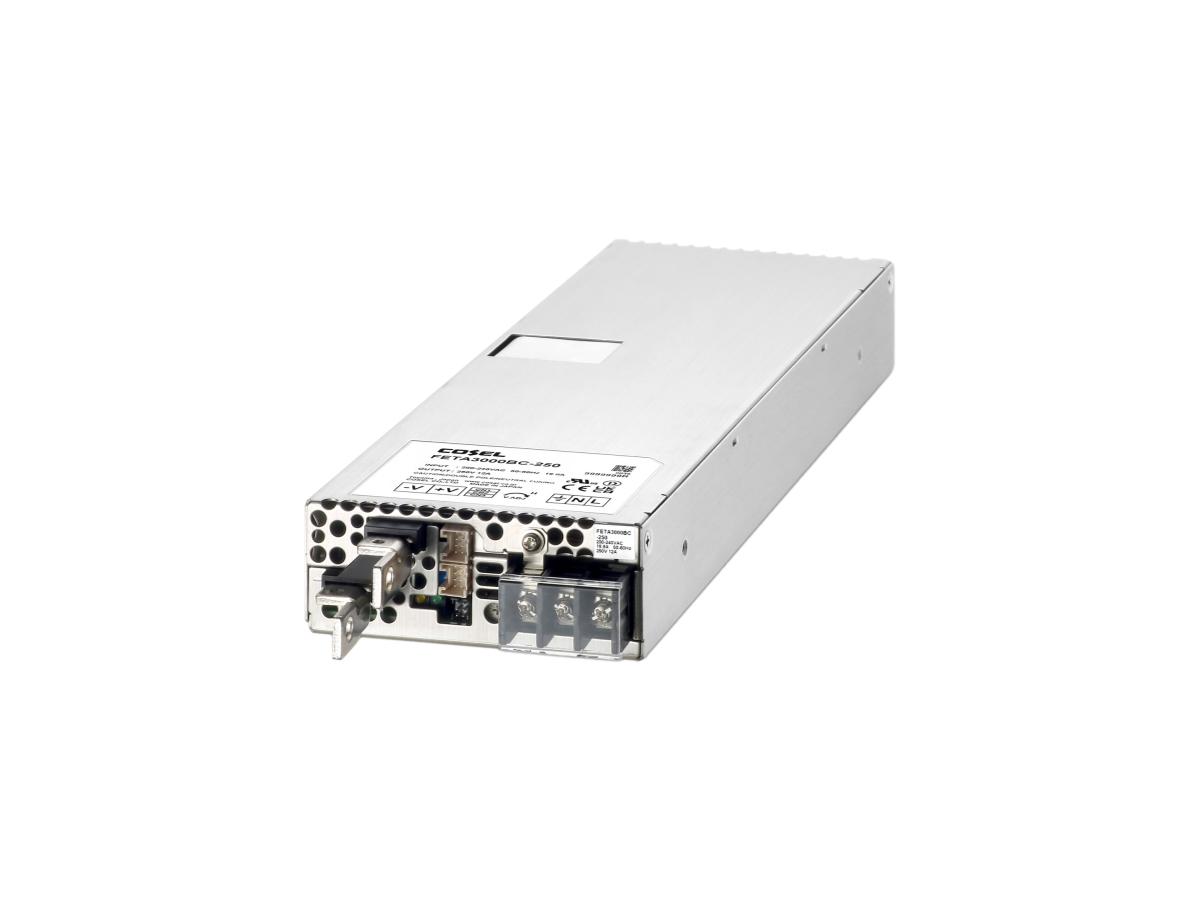

Basic Specification | FETA3000BC-250 |
---|---|
Check Stock | |
Input Voltage Range | AC170 - 264V 1Φ |
Output Voltage / Current | 250V 12A |
Output Power | 3000W |
Output Voltage Adj Range | 180 - 350V |
Operating Temp (°C) | -10 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing) |
Cooling Method | Forced cooling (internal fan) |
Dimensions (W x H x D) | 102x41x340mm |
Safety Agency Approvals | UL62368-1, C-UL(equivalent to CAN/CSA-C22.2 No. 62368-1), EN62368-1 |
Technical Data | FETA3000BC-250 |
Performance Data | |
EMC Data | |
Expected Life | |
MTBF | |
Reliability Data |
