PRODUCTS AC-DC DBD SERIES DBD50
Enquire

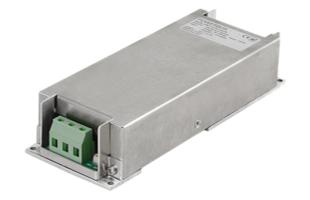

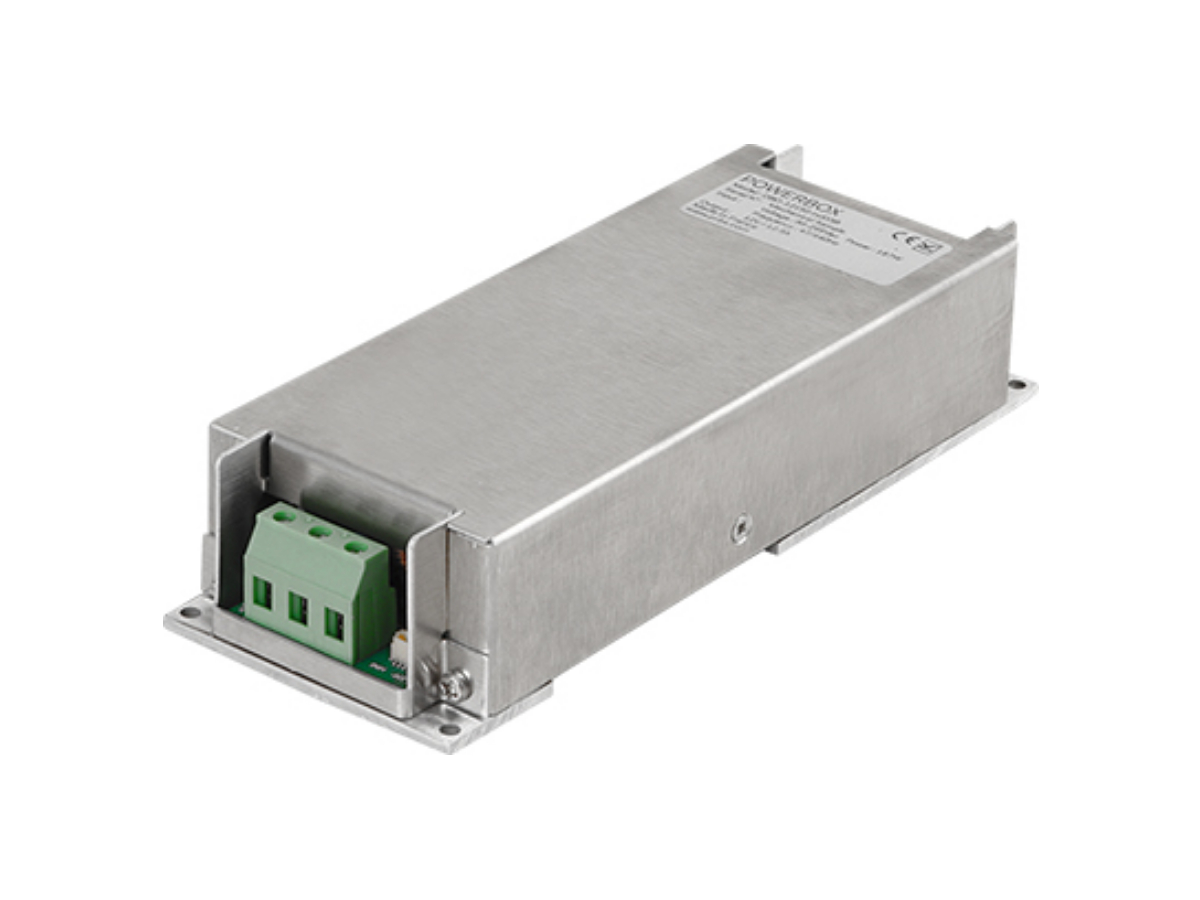

DBD50

DBD50

Key Product Features

  • Military/Defence Compliant
  • Conduction Cooling
  • Universal AC Input with Additional DC Input
  • Up to 150W output power
  • Low Inrush Current Limiting Circuit
  • Optional IP65 sealing

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification DBD-250 DBD-3V350 DBD-3V375 DBD-550 DBD-5100 DBD-8100 DBD-1275 DBD-12150 DBD-1575 DBD-15150 DBD-2475 DBD-24150 DBD-2875 DBD-28150 DBD-4875 DBD-48150
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC100 - 350V, AC110 - 230V DC100 - 350V, AC110 - 230V DC100 - 350V, AC110 - 230V DC100 - 350V, AC110 - 230V DC100 - 350V, AC110 - 230V DC100 - 350V, AC110 - 230V
Output Voltage / Current 2V 25A 3.3V 15A 3.3V 22.7A 5V 10A 5V 20A 8V 12.5A 12V 6.25A 12V 12.5A 15V 5A 15V 10A 24V 3.13A 24V 6.25A 28V 2.7A 28V 5.3A 48V 1.56A 48V 3.1A
Output Power 50W 75W 50W 100W 75W 150W 75W 150W 75W 150W 75W 150W 75W 150W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 100℃ -40 to 100℃ -40 to 100℃ -40 to 100℃ -40 to 100℃ -40 to 100℃
Cooling Method Conduction/baseplate Conduction/baseplate Conduction/baseplate Conduction/baseplate Conduction/baseplate Conduction/baseplate
Dimensions (W x H x D) 61x35x165mm 61x35x165mm 61x35x165mm 61x35x165mm 61x35x165mm 61x35x165mm
Safety Agency Approvals
Technical Data DBD-250 DBD-3V350 DBD-3V375 DBD-550 DBD-5100 DBD-8100 DBD-1275 DBD-12150 DBD-1575 DBD-15150 DBD-2475 DBD-24150 DBD-2875 DBD-28150 DBD-4875 DBD-48150
Performance Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
